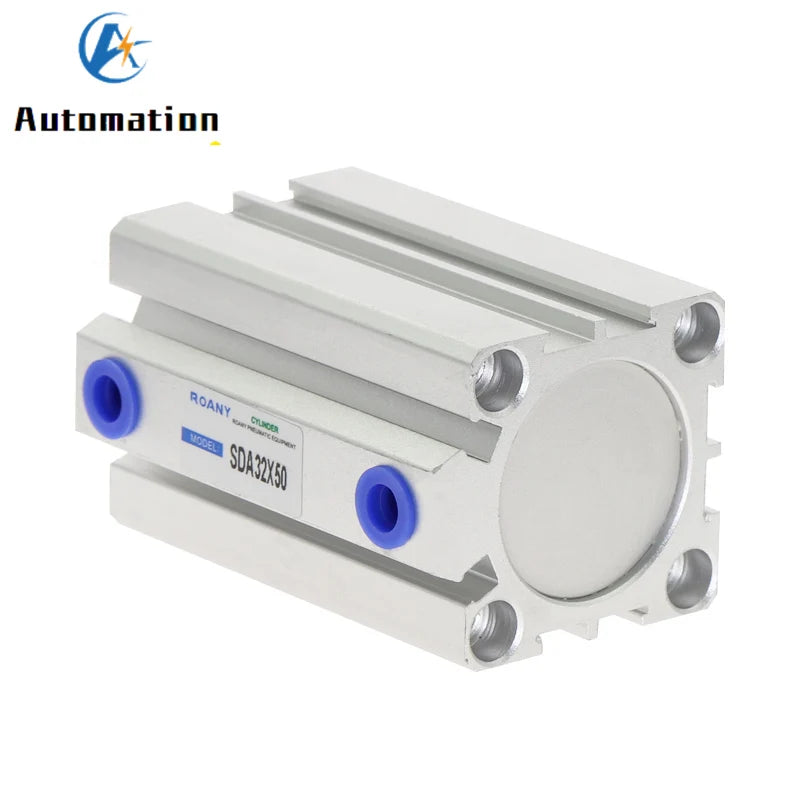

SDA32 Compact Double Acting Pneumatic Air Cylinder – 32mm Bore

The SDA32 Compact Air Cylinder is a reliable, space-saving double acting pneumatic piston cylinder designed for a wide range of industrial automation, tooling, and mechanical applications. With a 32mm bore and multiple stroke options available, this cylinder delivers consistent, controlled linear motion with every cycle. Its stainless steel construction ensures durability and long service life even in demanding environments.

Key Features

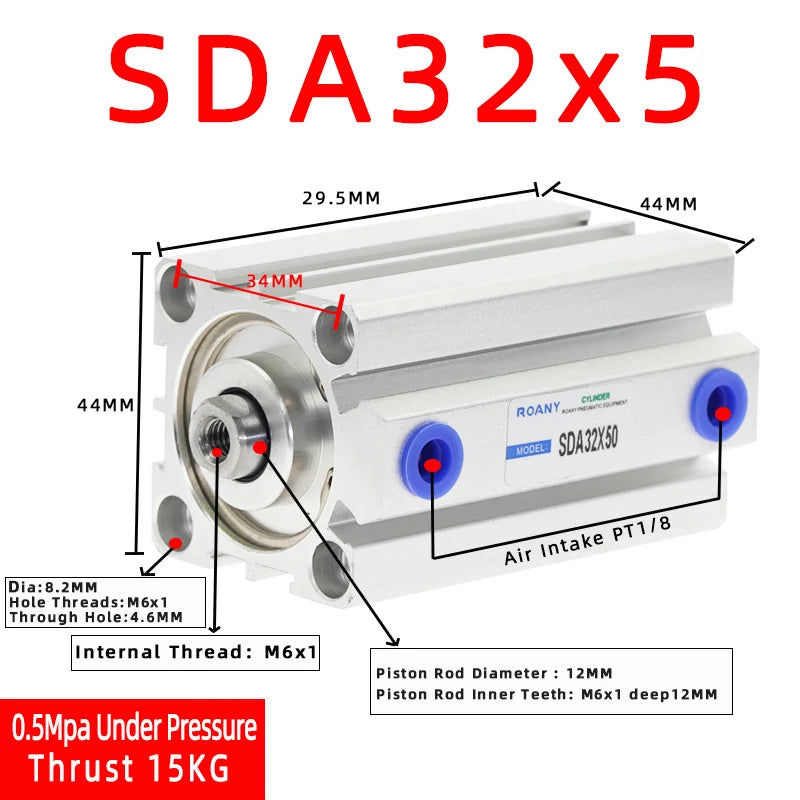

• Model: SDA32 – Double Acting Compact Cylinder
• Bore Diameter: 32mm

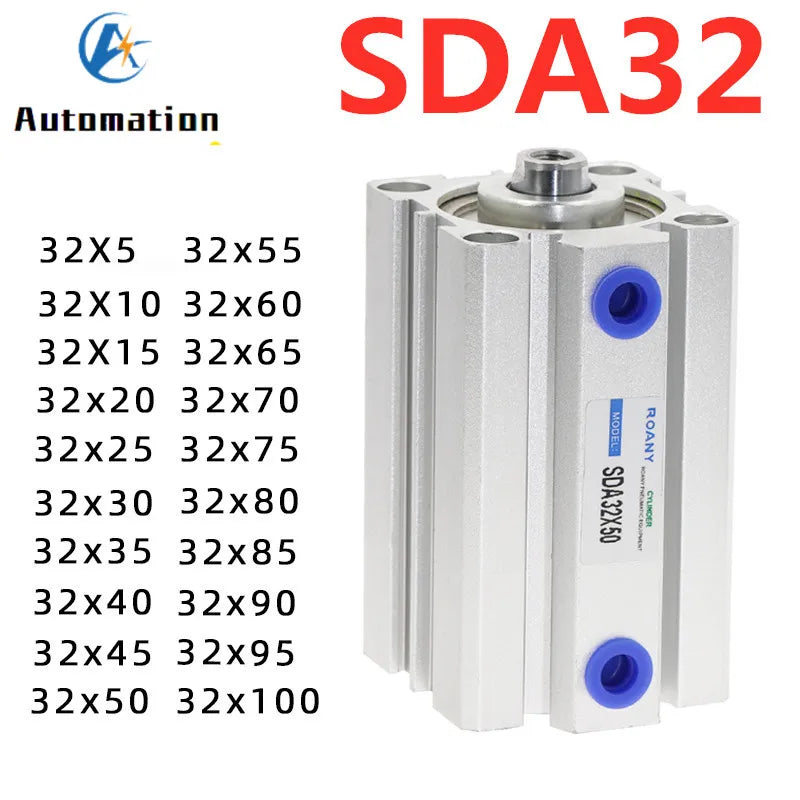

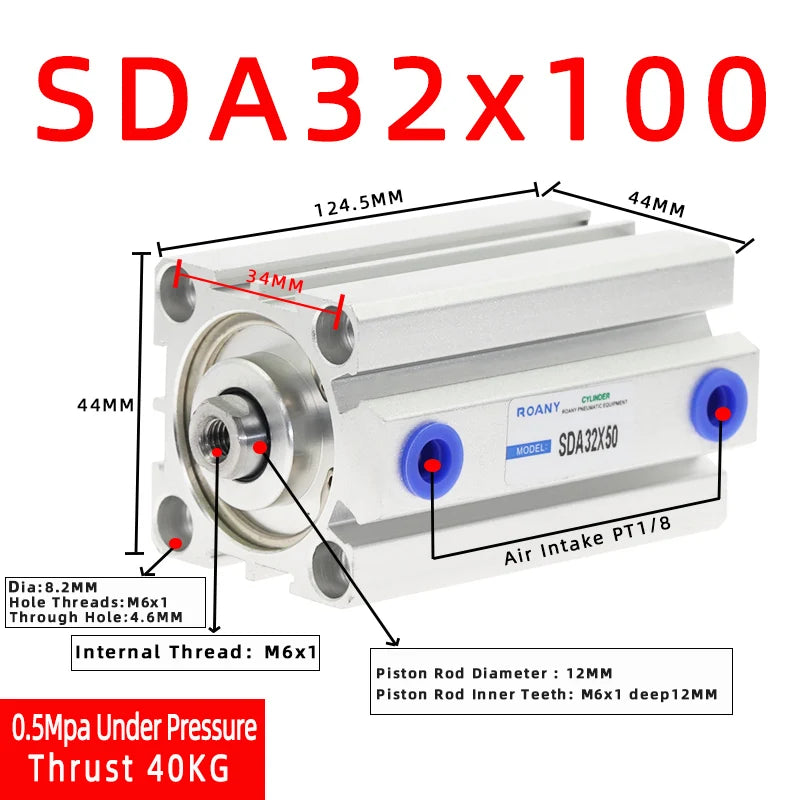

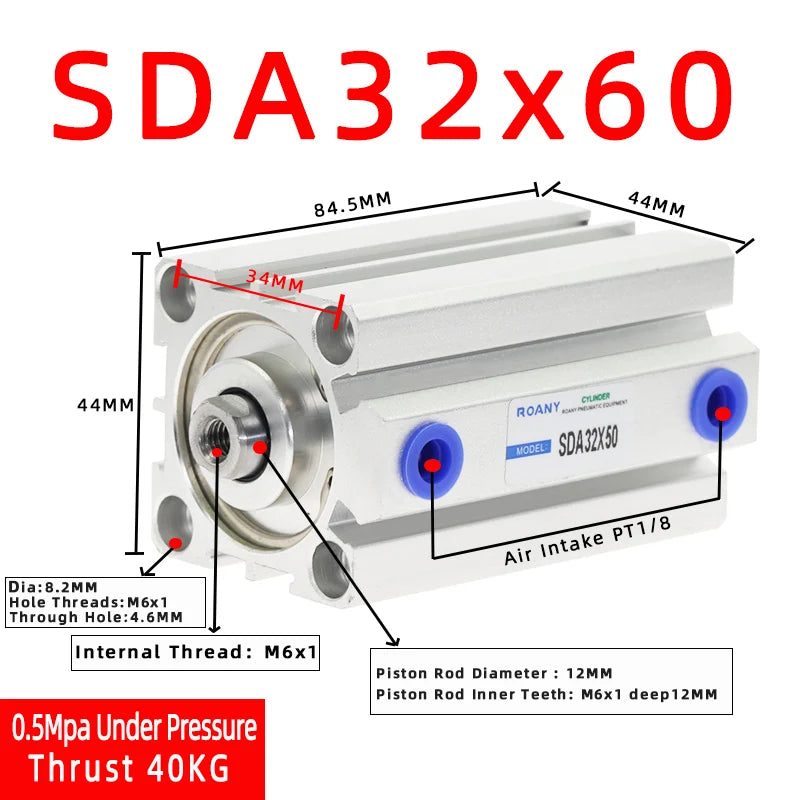

• Available Strokes: 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
• Working Fluid: Air (pneumatic)
• Operating Pressure Range: 0.1–1.0 MPa (15–145 PSI / 1.0–10.0 bar)
• Working Temperature Range: -20°C to 80°C (-4°F to 176°F)
• Buffer Form: Anti-collision pad for smoother end-of-stroke action
• Stroke Tolerance: +1.0mm
• Material: Stainless steel body for corrosion resistance and strength

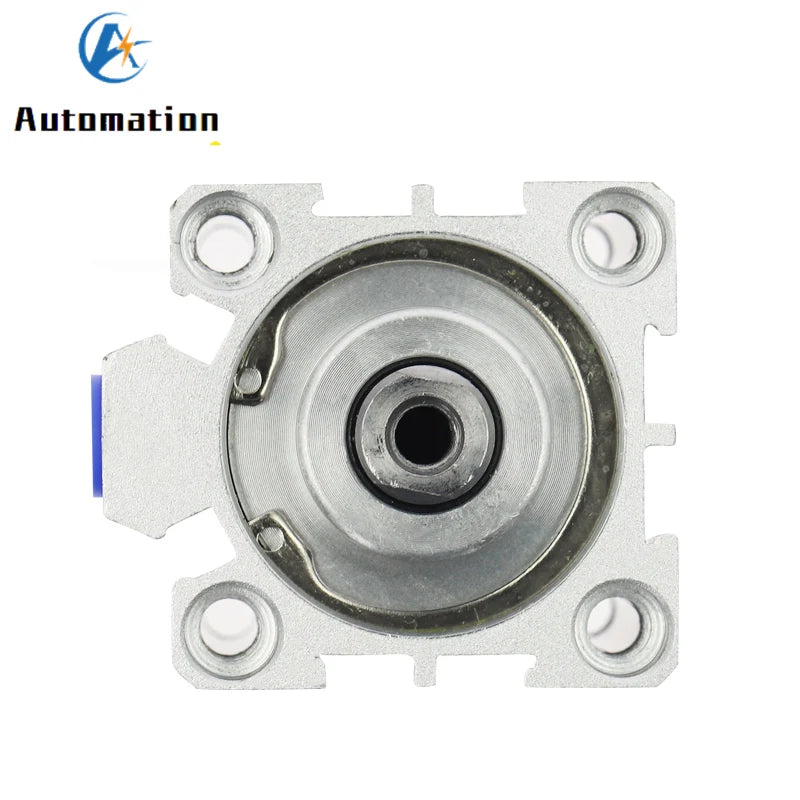

• Thread Type: Female (rod end)

Why Choose the SDA32 Compact Cylinder?

The SDA type series is widely recognized in industrial automation for its compact profile and dependable performance. The double acting design allows pressurized air to control both extension and retraction of the piston rod, giving you precise control over every movement. The integrated anti-collision pad cushions the piston at end-of-stroke positions, reducing mechanical wear and extending cylinder life. The stainless steel build resists corrosion, making it suitable for clean-room, food-grade adjacent, and general-purpose factory environments.

Specifications at a Glance

Ideal Applications

The SDA32 compact air cylinder is suited for:

• Industrial automation and assembly lines
• Pneumatic clamping and positioning fixtures
• Robotic end-of-arm tooling
• Packaging machinery
• Small-scale pneumatic actuator systems

Related Products You May Find Useful

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories – Anti-Loosening Replacement Parts
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What stroke lengths are available for the SDA32 compact air cylinder?

A: The SDA32 cylinder is available in multiple stroke options including 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, and 50mm. Select the stroke length that best fits your application during the ordering process.

Q: What is the operating pressure range for this pneumatic cylinder?

A: The SDA32 double acting air cylinder operates within a pressure range of 0.1 to 1.0 MPa (approximately 15 to 145 PSI or 1.0 to 10.0 bar), making it compatible with most standard shop-air and industrial pneumatic supply systems.

Q: Is this cylinder suitable for outdoor or high-humidity environments?

A: The stainless steel construction provides good resistance to corrosion, and the cylinder operates across a wide temperature range of -20°C to 80°C. For environments with heavy moisture exposure, ensure proper air filtration and lubrication are in place for optimal performance and longevity.

Q: What does "double acting" mean for this air cylinder?

A: A double acting cylinder uses compressed air to drive both the extension (forward) and the retraction (return) stroke of the piston rod. This gives you positive control in both directions, unlike a single acting cylinder which relies on a spring for the return stroke.
