XL Timing Pulley 28–60T Bore 5–30mm Synchronous Wheel 5.08mm Pitch

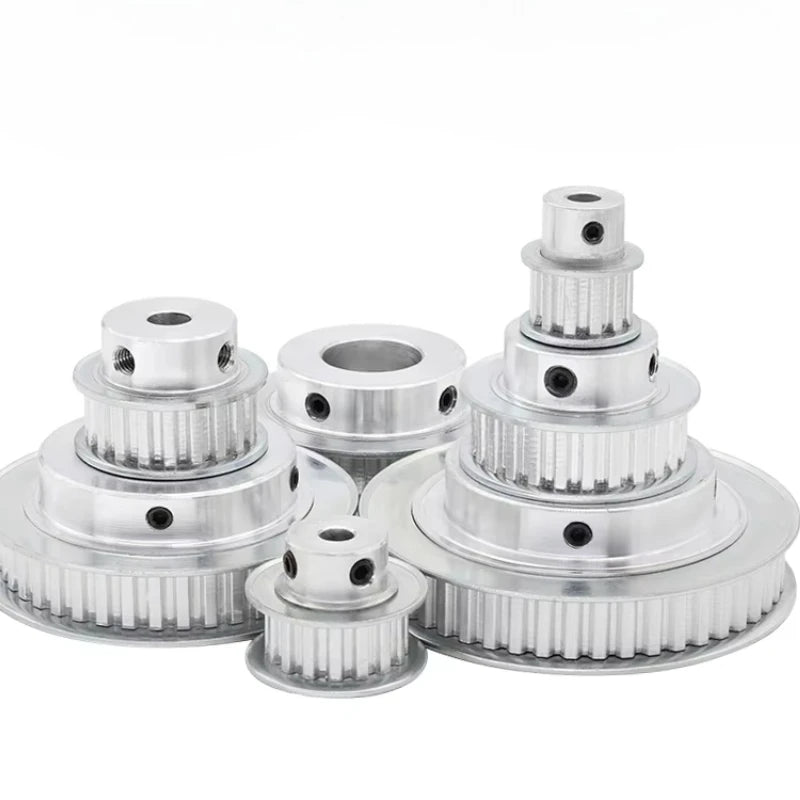

XL Timing Pulley – Multi-Tooth Synchronous Wheel for Precision Belt Drives

Upgrade your mechanical drive system with this versatile XL Series Timing Pulley. Engineered for precision, this synchronous wheel features a trapezoidal tooth profile and a 5.08mm pitch, making it fully compatible with standard XL timing belts. Whether you're building a CNC machine, 3D printer, conveyor system, or any custom mechanical project, this pulley delivers reliable, slip-free power transmission.

Key Specifications

• Model: XL (Extra Light) Series
• Tooth Shape: Trapezoidal

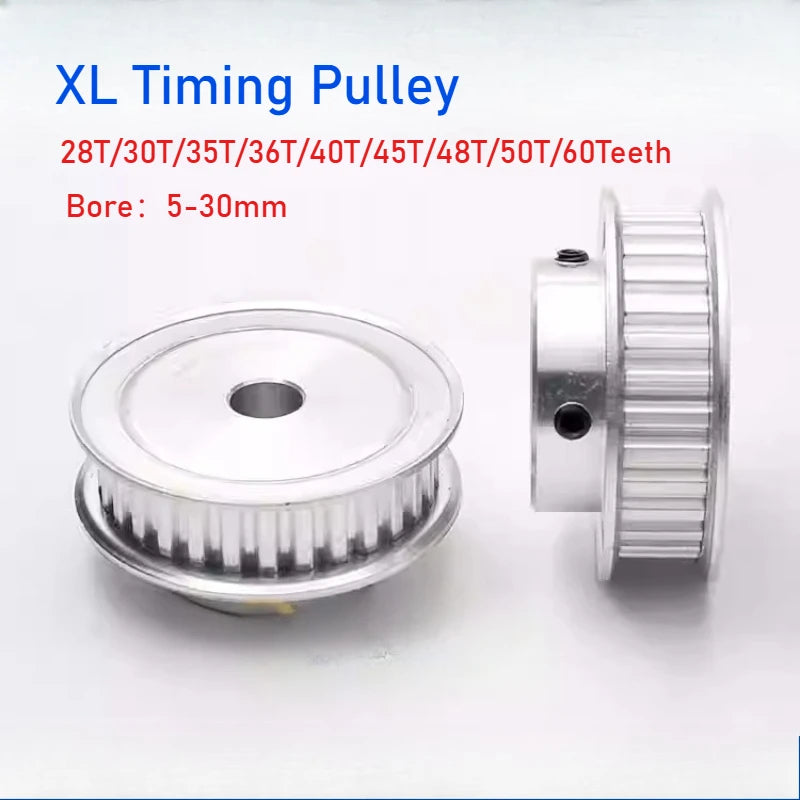

• Available Tooth Counts: 28T / 30T / 35T / 36T / 40T / 45T / 48T / 50T / 60T
• Bore Sizes Available: 5 / 6 / 6.35 / 7 / 8 / 10 / 12 / 12.7 / 14 / 15 / 16 / 17 / 19 / 20 / 22 / 25 / 30mm
• Pitch: 5.08mm
• Groove Width: 11mm (suits 10mm belt width)
• Total Height: 25mm

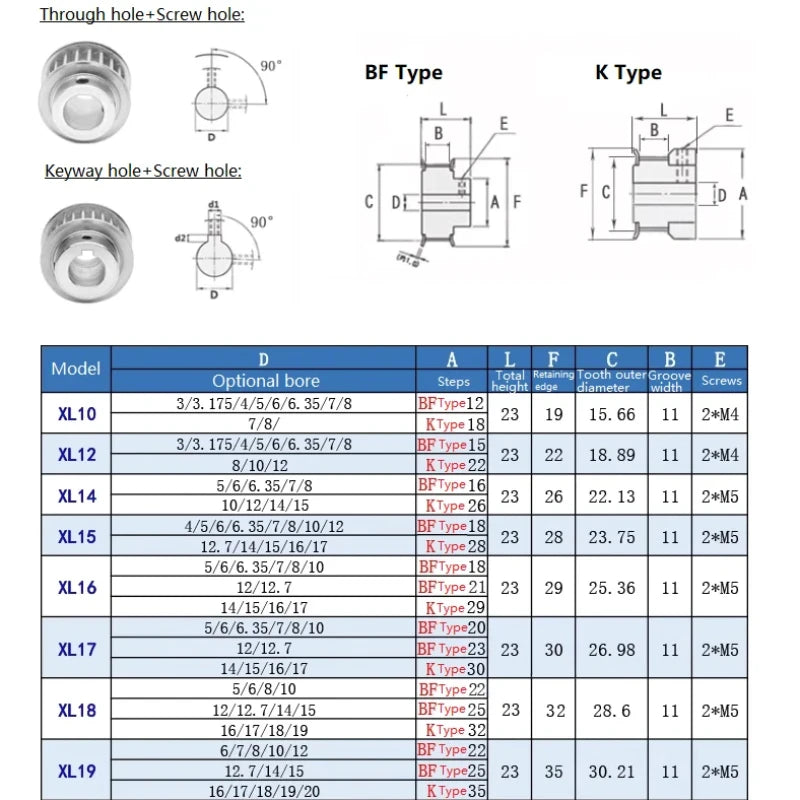

• Appearance/Flange Type: BF Type (with retaining flanges)
• Material: Aluminum alloy body with galvanized iron retaining edge

Why Choose This XL Timing Pulley?

• Wide Compatibility: Multiple tooth count and bore size options let you match virtually any drive shaft and belt configuration.
• Durable Construction: Aluminum alloy body keeps weight low while offering excellent strength; galvanized iron flanges prevent belt slippage and misalignment.
• Precise Power Transfer: Trapezoidal tooth profile and accurate 5.08mm pitch ensure synchronous, backlash-minimized transmission for high-accuracy applications.

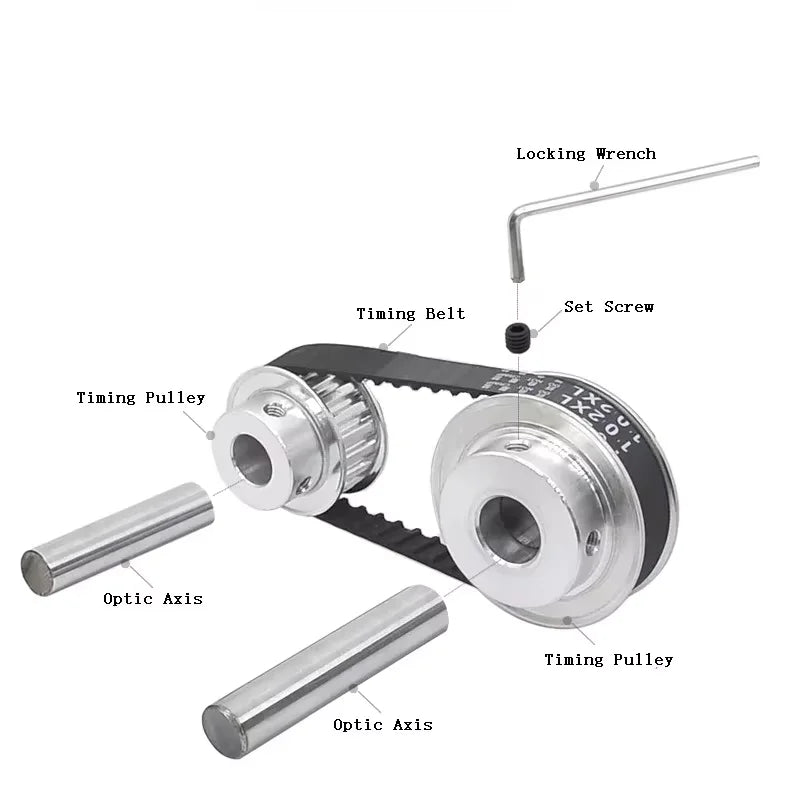

• BF Flange Design: Integrated retaining flanges on both sides keep the timing belt securely seated during operation.
• Versatile Use: Ideal for CNC routers, 3D printers, laser cutters, robotics, automation equipment, and DIY mechanical builds.

Applications

This XL timing pulley is suitable for a wide range of precision mechanical applications including CNC machines, 3D printers, laser engravers, robotic arms, conveyor systems, and custom automation projects requiring accurate and repeatable motion control.

Made in Mainland China.

You May Also Like

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories – Anti-Loosening Replacement Parts
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What belt width is this XL timing pulley compatible with?

A: This XL timing pulley has a groove width of 11mm, making it designed for use with 10mm wide XL timing belts. The 5.08mm pitch matches the standard XL belt profile for a precise, synchronous fit.

Q: What materials are used in this timing pulley?

A: The pulley body is made from lightweight aluminum alloy, while the retaining flanges on both sides are constructed from galvanized iron to prevent corrosion and keep the belt securely aligned during operation.

Q: Can I use this pulley for a CNC machine or 3D printer?

A: Yes! The XL series timing pulley is widely used in CNC routers, 3D printers, laser engravers, and robotics. Simply select the tooth count and bore size that matches your drive shaft diameter and gearing requirements for a direct drop-in fit.

Q: How do I choose the right bore size and tooth count?

A: Select the bore size that matches your motor or drive shaft diameter (available from 5mm up to 30mm). Choose the tooth count based on your desired gear ratio — more teeth means a larger pulley diameter and lower rotational speed relative to the motor.
